Kenter Shackle

Kenter Shackle



China Largest Marine Kenter Shackle Factory, Manufacturer, stockist, Military supplier, ship Kenter Shackle for sale with KR LR BV NK ABS DNV RINA..all IACS members' certification.

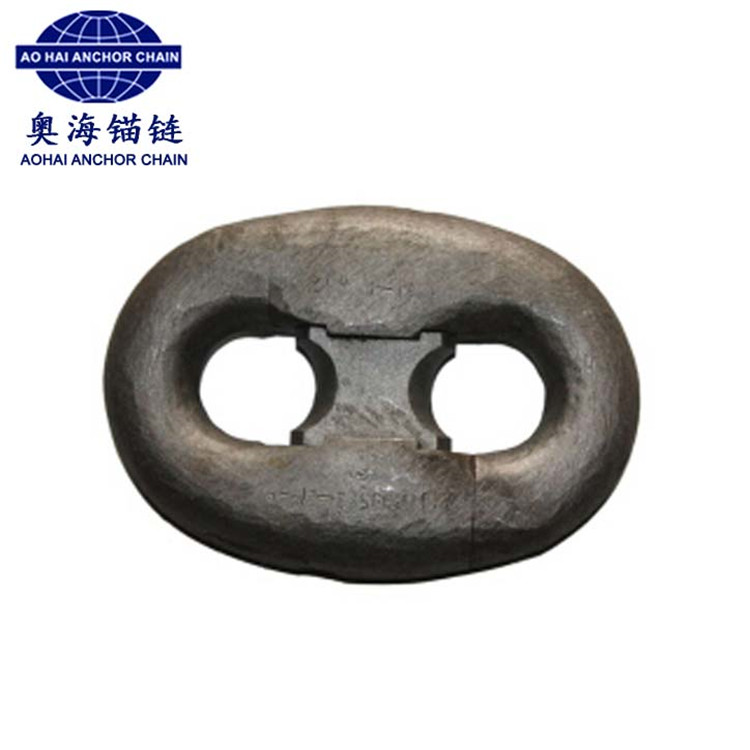

Kenter shackle is used to connect two separate lengths of chains. The shackle consists of two separate halves that are securely joined together with a centre chock and taper pin. Remove the taper pin to ‘unlock’ the shackle and connect your chains.Kenter shackle directly connect two common links no need Enlarge links and End link.

We can offer Grade 1, Grade 2, Grade 3, ORQ, R3, R3S, R4, R4S, R5 Kenter Shackle from 11mm~182mm











Size(D) 4.2D 6D 1.52D Size(D) 4.2D 6D 1.52D
11 46 66 17 70 294 280 106
12.5 53 75 19 73 307 292 111
14 59 84 21 76 319 304 115
16 67 96 24 78 328 312 119
17.5 74 105 27 81 340 324 123
19 80 114 29 84 353 336 128
20.5 86 123 31 87 365 348 132
22 92 132 33 90 378 360 137
24 101 144 36 92 386 368 140
26 109 156 40 95 399 380 144
28 118 168 43 97 407 388 147
30 126 180 46 100 420 400 152
32 134 192 49 102 428 408 155
34 143 204 52 105 441 420 160
36 151 216 55 107 449 428 163
38 160 152 58 111 466 444 169
40 168 160 61 114 479 456 173
42 176 168 64 117 491 468 178
44 185 176 67 120 504 480 182
46 193 184 70 122 512 488 185
48 202 192 73 124 521 496 188
50 210 200 76 127 533 508 193
52 218 208 79 130 546 520 198
54 227 216 82 132 554 528 201
56 235 224 85 137 575 548 208
58 244 232 88 142 596 568 216
60 252 240 91 147 617 588 223
62 260 248 94 152 638 608 231
64 269 256 97 157 659 628 239
66 277 264 100 162 680 648 246
68 286 272 103





 We keep some stock Any inquiry, please contact us: info@anchorchaincn.com
